Cobra MX-5 Mk1/Mk2 Bucket Seat Fitting Kit Explained
Cobra Tailored Adaption Bars for the Mazda MX5 NA/NB allow you to adapt your original equipment runners to fit Cobra base-mounted, fixed back seats with a hole pattern of 292mm (left to right) and 330mm (front to back).

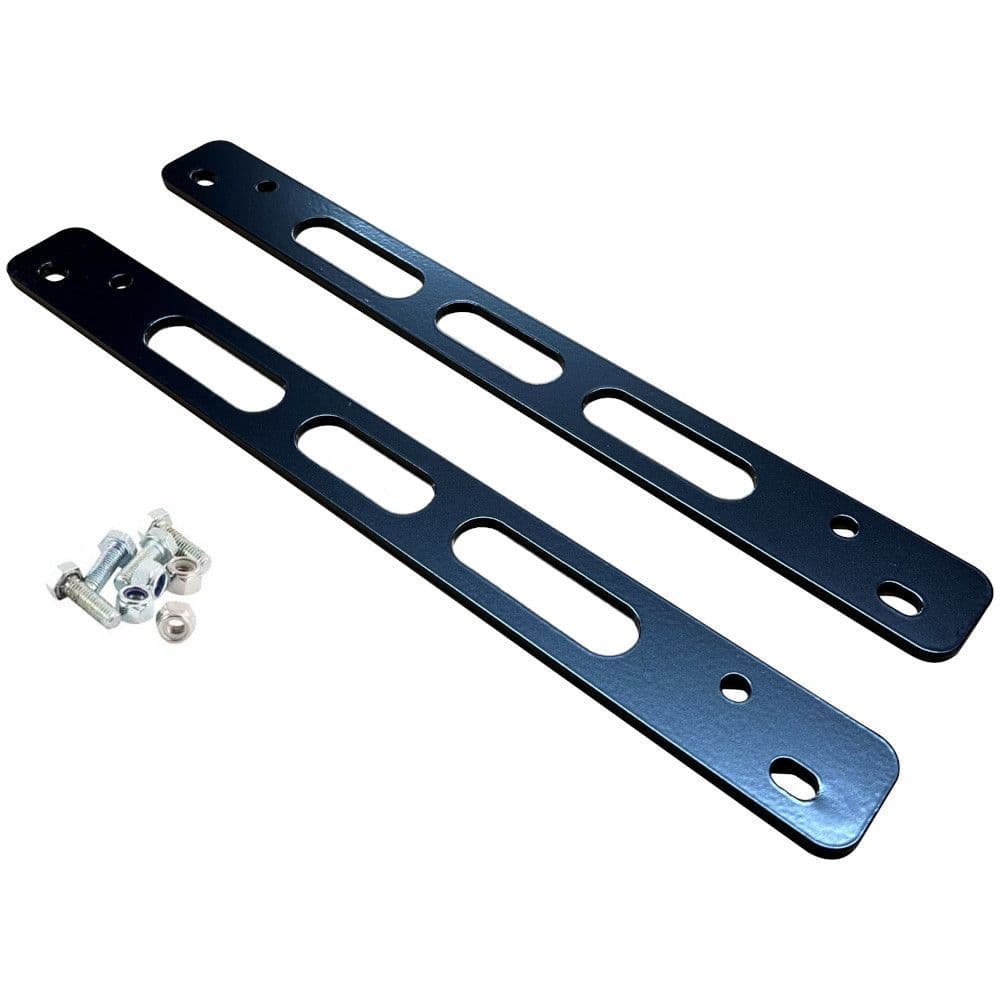

Each MX-5 adaption bar kit includes:
2x Adaption Bars
4x M8x20 Bolts (Shorter
Option)
4x M8x25 Bolts (Longer
Option)
4x Nuts
4x Spacers
View Our Cobra Mazda MX-5 H Frame Subframes
Cobra subframes are made to fit Cobra seats directly into your Mazda MX-5 Mk1 or Mk2 car quickly and easily. We strongly recommend using these when possible for a solid and secured fitment. These specific Mazda frames are essentially brackets that adapt your original equipment to allow the fitment of a Cobra seat. They are not complete replacement frames.
Fitting Instructions:
1. The adaption bars fit across the width of the new Cobra seats. Please note the bars for the passenger side of the car are shorter in length to the ones for the driver’s side of the car.
3. Remove the original seats from the car complete with the original runners.
5. With the seat upside down, place the runners (again upside down) onto the base of the new seat.
7. To achieve the optimum height longer bolts and a spacer are provided to fit between the runners and the adaption bars.
2. Bolt the adaption bars to the Cobra seats using the four bolts with allen key heads that are supplied with the seats. These will be retained by the four captive nuts already installed in the base of each seat.
4. Remove the runners from the original seats. These will be used again and simply bolted to the new seats in the same plane as the original configuration.
6. Using the original bolt holes in the runners, put the bolts through the runners and bolt them to the adaption bars using the nuts provided.
8. The seats are now ready to be refitted into the car using the original bolts.
Our Cobra Monaco Bucket Seat Collection
We have a wide range of Cobra steel frame bucket seats, with many different variations of the Cobra Monaco seat model. We have seats with and without FIA approvals, suitable for all motorsport events, and multiple trim materials to choose from to perfectly match your vehicles interior.
